ATP Meter Maintenance 2023
There are currently 2 ATP meters produced by Hygiena for measuring ATP surface microbial activity.

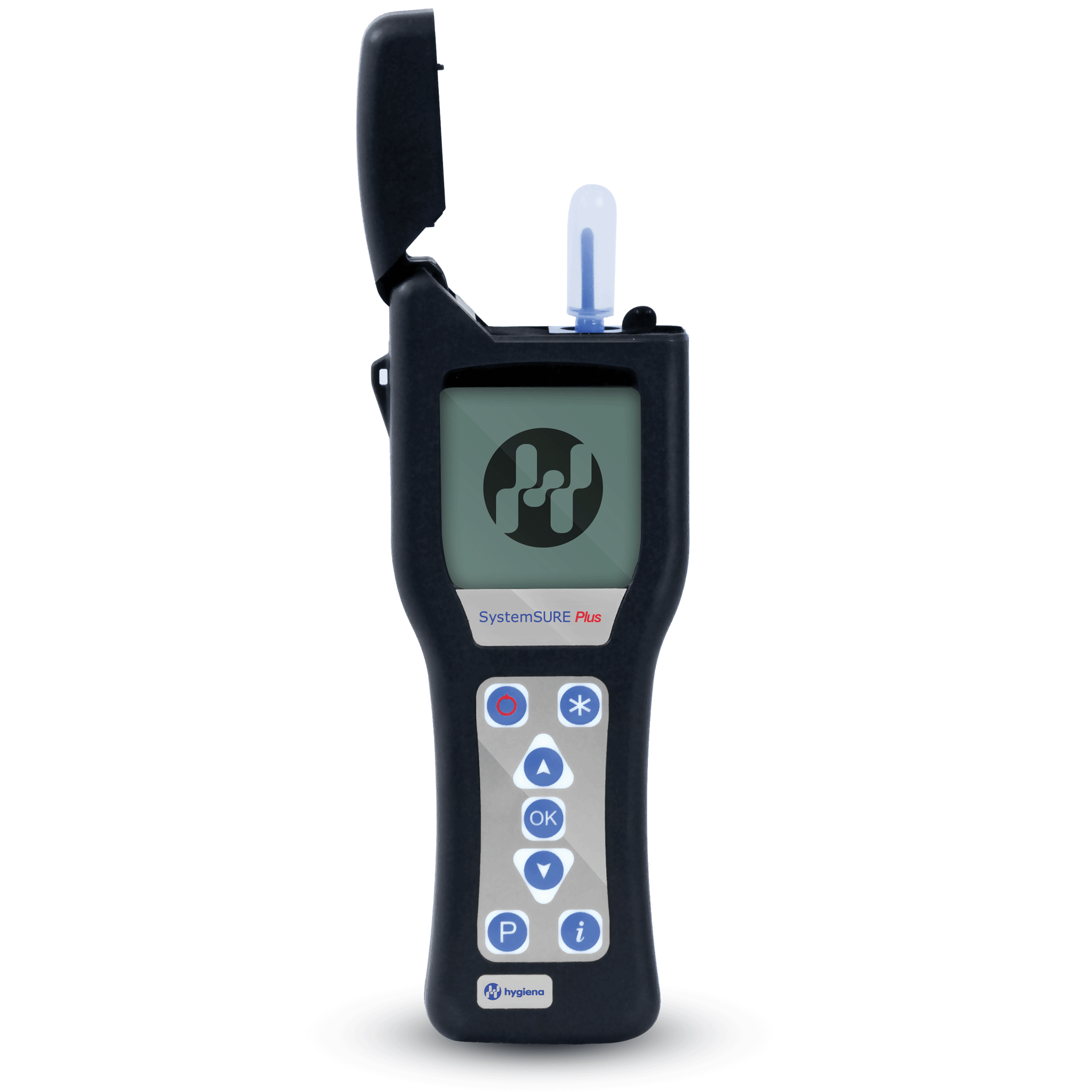

ACES promotes the use of the SystemSURE Plus ATP meter and this is primarily focused on this product.
This page is ONLY focused on the SystemSURE Plus.

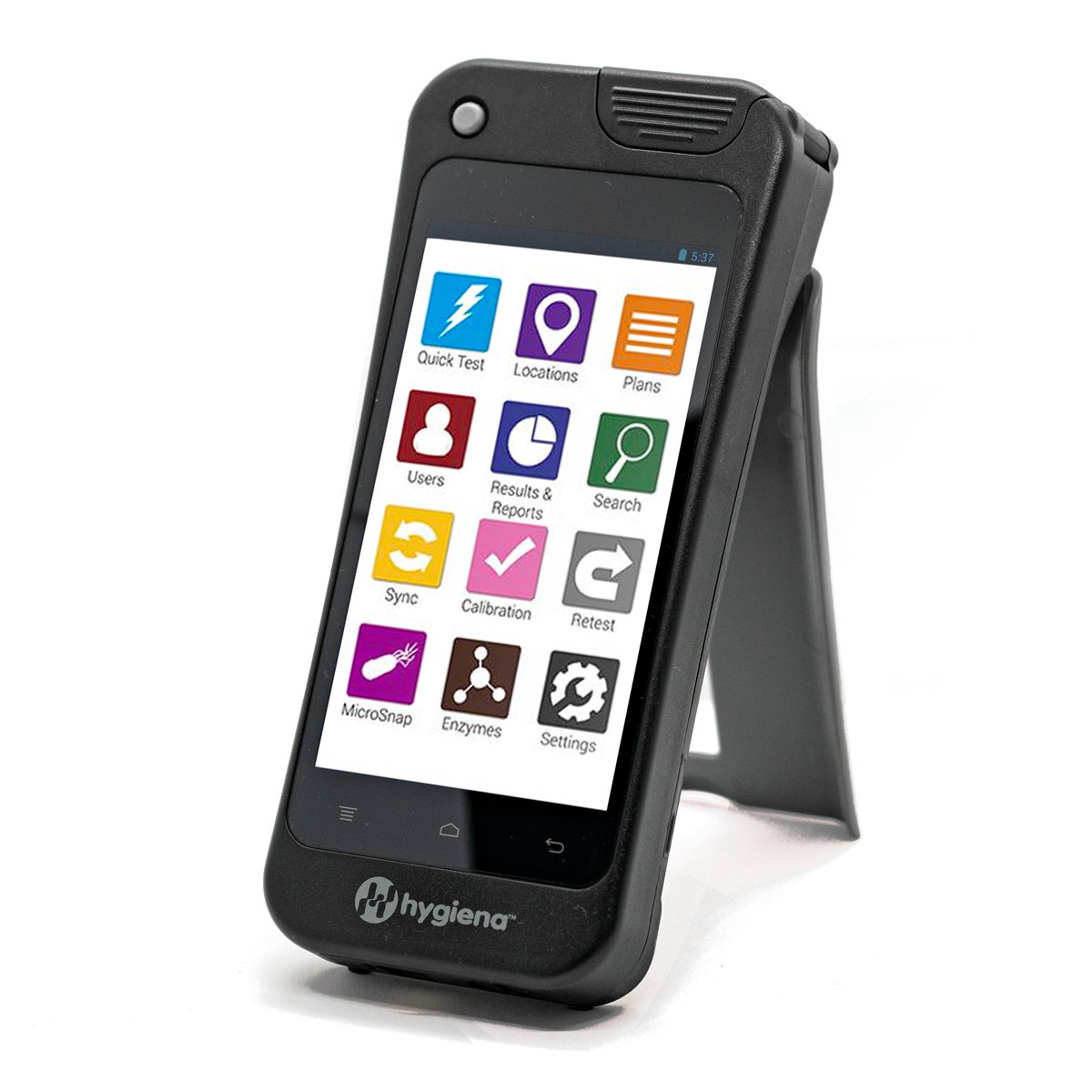

Ensure Touch
6.3 Cleaning and Replacing the Protective Pocket
Section 6.3 of the Manual has a ‘Cleaning and Replacing the Protective Pocket’ process (Page 23) for the protective pocket and is required to be conducted regularly to maintain the luminometer at optimal performance and accuracy.
WARNING: Always turn off the luminometer before removing the protective pocket
As per the manual:

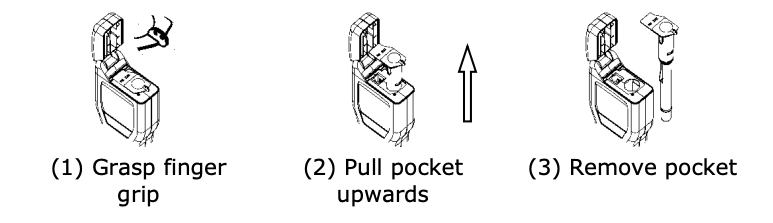

The luminometer is designed with a special protective pocket, which can be removed for cleaning or replacement if required. To remove the protective pocket, open the luminometer’s lid, tightly grasp the finger grip of the pocket, gently pull the pocket upwards, and remove it from the luminometer.
CAUTION: Great care should be taken when removing the pocket not to damage it or the surrounding casework. Do not use excessive force. Never use a tool to pry out the pocket.
Carefully clean the interior of the pocket using water or a very mild detergent solution, ensuring that the pocket is completely dry and clean before putting it back into the luminometer.
WARNING: Do not use solvents or other strong chemicals as these will degrade the clear optical section of the pocket and affect the performance of the luminometer..
To replace the pocket, carefully insert it into the luminometer, ensuring that it is correctly orientated, and then push it fully down until it clicks into position.
WARNING: Do not use excessive force when replacing the pocket. If the pocket jams during insertion, remove it fully, check for obstructions or damage, and then try again.
Finally ensure that the black rubber RS232 cover is tucked in under the lip and that the lid can be fully closed. (see section 5.6).
DIY Calibration Verification

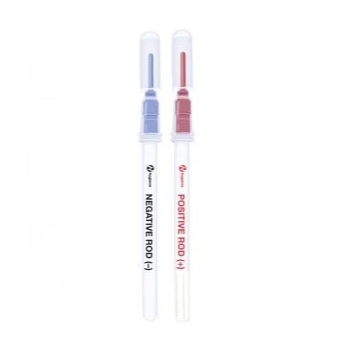

A Calibration Control Kit is sold separately to allow you to verify the calibration.
The Calibration Control Kit eliminates the need for manufacturer calibration checks to save you hundreds of dollars per year.
Verify instrument calibration in-house
Prove to auditors that your monitoring system is working properly.
The rods should be measured in the luminometer on a regular basis to keep a record of the calibration control
Shelf life: 5 years
Hygiena SystemSURE PLUS Calibration Control Kit
